Product introduction
The BT-MC76-1 is a low cost, small size Bluetooth module that integrates a single chip Bluetooth baseband processor and complies with the Bluetooth v5.4 specification.

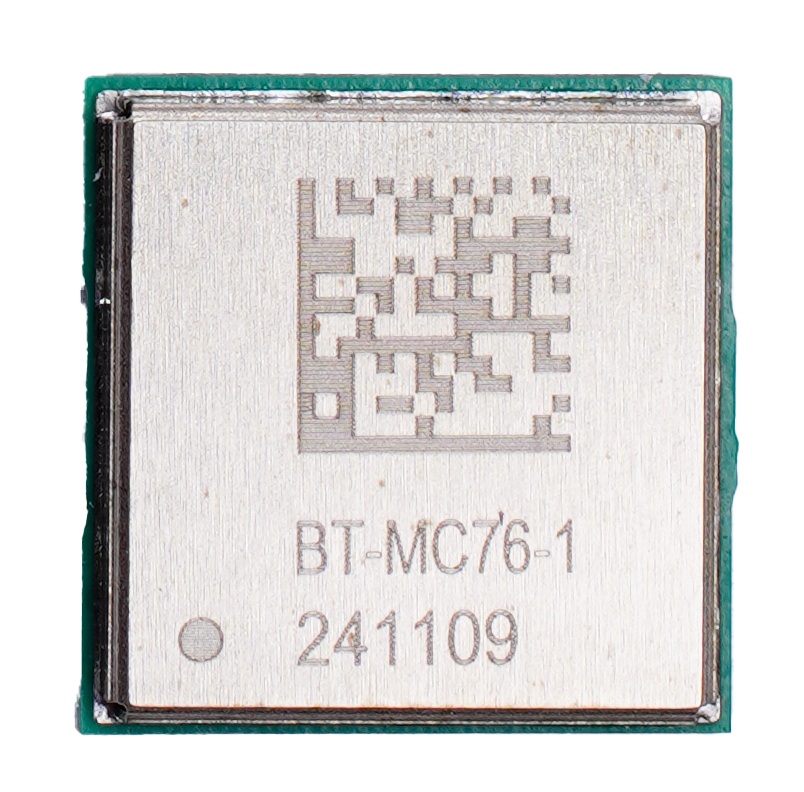

BT-MC76-1
Main parameter
•Chipset：CYW20706
•Module dimension(mm)：12*12*2.3mm
•BT Versions:v4.2
•Operating temperature:-40~85℃
•Mac:Single
•Voltage:2.8~3.6V
•Frequency Range(GHz):2.4GHz
•Power class level:Class 2
•Interface:URAT、PCM/I2S
•Application:Automative
•Protocol/features:HCI BT_MODULE A2DP、AVRCP、HFP、HSP、SPP、GATT、PBAP
